PVC window double head cutting saw
Main Features :
1.This is the professional machine for cutting plastic window.
2.Angle range: -45 °~90° ~ +45 °,any angle indexing by manually.
3.Feed mode for the swing infeed, profiles better force to ensure cutting accuracy.
4.Horizontal and vertical Double clamping system, to adapt to different profiles, pressing more reliable.
5.With transom cutting device, cutting transom convenient and accurate.
6.Two button for starting operation, to ensure operator safety.
7.With carbide saw blades, it has high productivity and high processing precision.
8.Swing type of work, feeding is smooth.
Technical Parameters :
Model | SJ02-3500 |
Power Voltage | 220V /380V / 415V and other |
Input Power | 1.5KW *2 |
Motor Rotation Speed | 2800 r/min |
Air Pressure | 0.5-0.8 MPa |

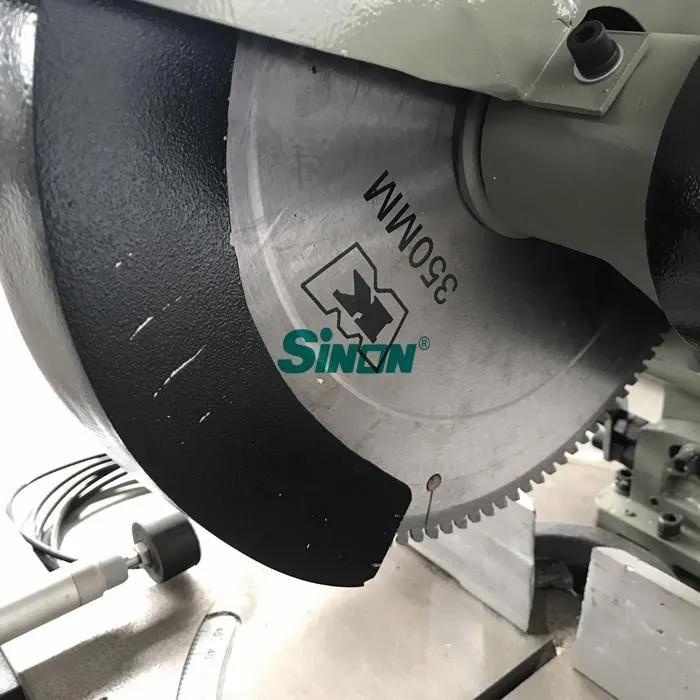

Blade Specification | ￠350mm *￠30mm*4.4mm |
Cutter Feeding Speed | 0-3M/min |
Cutting Angles | Any Angles between 45° ~ 90° ~45° |
Cutting Width | Max.200mm |
Cutting Height | 110mm |
Cutting Length | 450mm - 3500mm |
Overall Dimension | 4000x1100x1600mm |
Weight | 800KG |
FAQ
1. Are you a trading company or a factory?
Factory and Manufacturer
2. When can we arrange shipment?
We usually arrange shipment within 10-15 days after getting deposit,
but customized machines should be about 20 days.
3. Do you provide equipment operation training after sale?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do I need?
1).Double /Single-head cutting saw
2).Copy router machine
3).End milling machine
4).Corner connector cutting saw
5).Corner combining machine
6).Punching hole machine
7).Aluminum Bending Machine
8).Other related machines
5. If I make PVC window and door, how many basic machines do i need?
1).Double /Single-head cutting saw
2). Welding machine 1/2/3/4 head
3).Glazing Bead saw machine
4).Water-slot Milling machine
5).V-notch Cutting Saw / End Milling machine
6).Lock hole Milling machine
7).Corner cleaning machine
8).PVC Bending Machine
9).Screw Drilling Fastening Machine for Steel Liner
6. Can you customize the machine according to my request?
Yes. We have experienced engineers and technical team, can provide personalized service.
